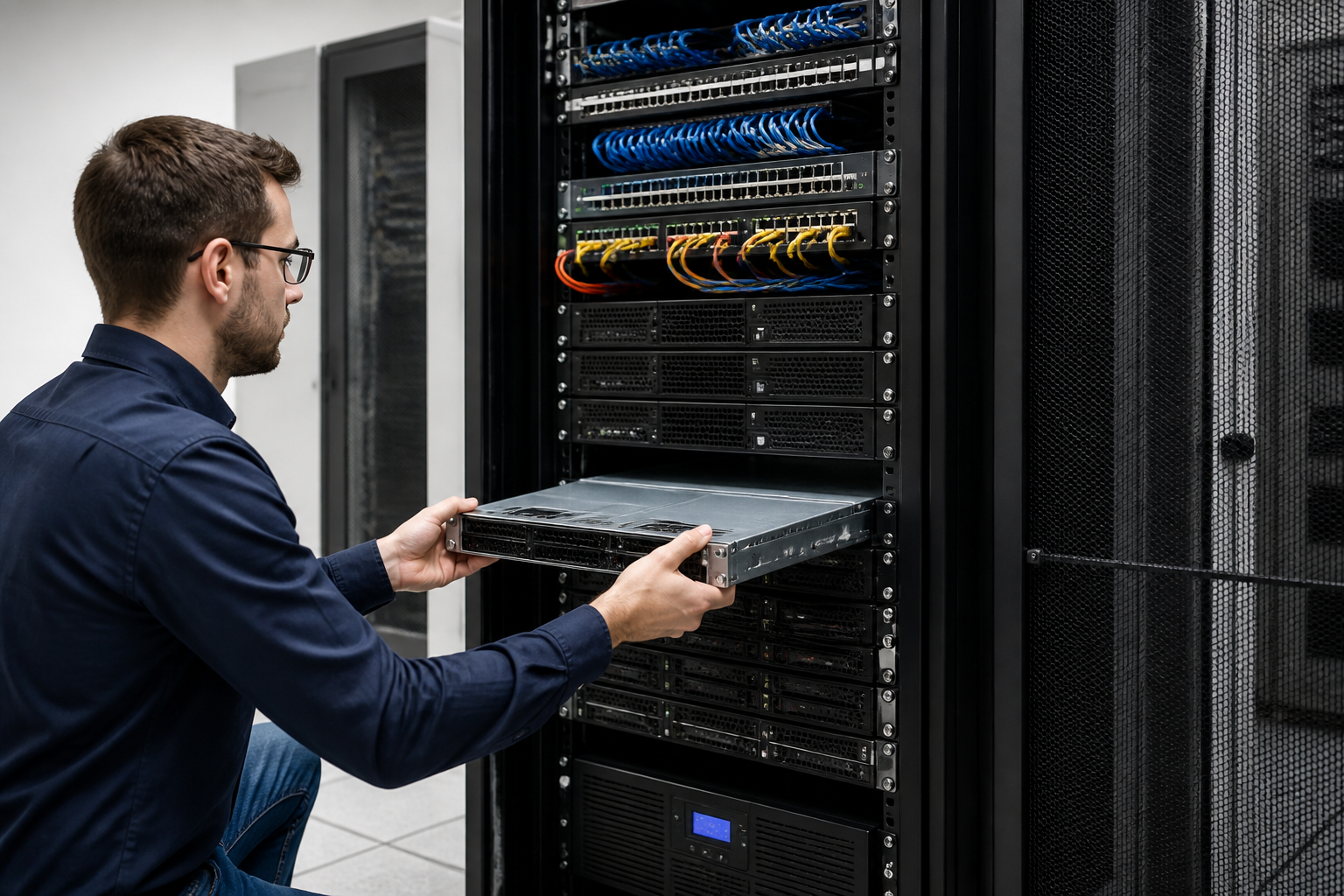

Sizing a 19 Inch Rack for Servers, Switches and Cables

Choosing a 19 inch rack is an important infrastructure decision. The right cabinet or open-frame rack should accommodate your current equipment, support reliable operation and leave enough flexibility for future changes. It also needs to fit the installation environment, provide practical cable access and make maintenance straightforward. This guide explains the main criteria to review before buying, whether you are setting up a network room, server room, office cabinet or data centre environment.

What is a 19 inch rack?

A 19 inch rack is a standardised equipment frame or cabinet designed for rack-mount devices. The measurement refers to the nominal mounting width between the vertical rails, allowing compatible equipment such as switches, patch panels, servers, storage devices and power distribution equipment to be installed in a common format.

Rack systems are usually described using rack units, written as “U”. One rack unit represents a defined vertical installation space. Every rack-mounted device uses a specified number of rack units, so calculating available height is one of the first steps in selecting a suitable enclosure.

How to select the right 19 inch rack

Decide between a cabinet and an open-frame rack

The installation location and equipment type will influence the best rack format.

• Enclosed cabinets provide a more controlled installation environment and can help organise equipment, cables and access. They may be suitable where physical security, dust management or a finished appearance is important.
• Open-frame racks allow convenient access from multiple sides and can be useful in dedicated technical areas where equipment is already protected by the room.

Consider who needs access to the equipment, how much protection the installation requires and whether the rack will be placed in a public, office or restricted technical area. For a broader comparison of rack types and planning considerations, see RADA Networks’ server rack selection guide.

Calculate the required rack height

Begin with an inventory of the equipment you plan to install. Record the rack-unit height of each server, switch, patch panel, shelf, cable manager and other device. Add the figures together, then allow space for equipment that may be added later.

A rack that is completely filled on day one can make upgrades difficult. Spare space also helps with rearranging equipment, separating systems and improving access during maintenance. However, unused height should be balanced against the available floor space and the practical cost of installing a larger enclosure.

Remember to account for equipment that is not rack-mounted. A shelf, drawer or other supporting accessory may be required for devices without mounting brackets, and these items also consume usable rack height.

Check usable depth, not just external dimensions

Rack depth is a common source of installation problems. Before ordering, compare the cabinet’s usable mounting depth with the complete depth of the equipment, including connectors, power plugs, cable bend radius and any rear support requirements.

Do not rely only on the size of the main chassis. A device may fit between the rails but still leave too little space for rear connections or airflow. Also check whether the cabinet’s front and rear rails can be adjusted to suit the equipment. This is especially important when a single rack will contain equipment from different manufacturers.

External depth matters as well. Measure the available route through doors, corridors, lifts and the final installation area. The rack must be able to reach its intended position and leave enough clearance for doors, side panels and maintenance access.

Review weight and structural requirements

List the approximate weight of the equipment and accessories, then compare the total with the rack’s stated load capacity. Place heavier devices in a stable lower position where appropriate, while ensuring that the installation remains accessible and well organised.

Consider how the rack will be supported. Depending on the environment, it may be installed on the floor, positioned against a wall or integrated into a larger technical area. The floor, mounting surface and handling method should all be suitable for the chosen enclosure and its fully populated load.

Plan airflow and temperature management

Heat management should be considered before equipment is installed. Servers, switches, storage devices and power equipment can all contribute to the thermal load of a rack. Review the equipment manufacturers’ airflow direction and avoid blocking vents with blanking panels, cables or poorly positioned accessories.

An enclosed cabinet may require a suitable ventilation approach for the room and equipment. Think about the position of air inlets and outlets, the surrounding room conditions and how maintenance staff will access filters or fans if those features are used. Good rack planning works alongside the wider cooling design rather than treating the cabinet as an isolated component.

Allow space for cable management

Neat cabling is more than a presentation benefit. It makes ports easier to identify, reduces accidental disconnection and simplifies troubleshooting. Before selecting a rack, decide how cables will enter, exit and move through the cabinet.

Check for practical space at the sides, front and rear of the rails. Vertical and horizontal cable management accessories can help separate power and data cabling, maintain bend radius and prevent cables from obstructing equipment airflow. If the rack will support structured cabling, plan the relationship between patch panels, switches and cable pathways from the beginning. RADA Networks’ guide to structured cabling provides further planning context.

Consider access control and physical security

Decide how much physical protection the equipment needs. A lockable enclosure may be appropriate where unauthorised access, accidental contact or interference is a concern. In a controlled technical room, open access may be acceptable, but the decision should reflect the location and the importance of the installed systems.

Also review how doors and removable panels affect maintenance. Security features should not make routine work unnecessarily difficult. Choose a design that gives authorised personnel practical access to the front, rear and sides where required.

Check power distribution and accessory compatibility

Power planning should be completed alongside rack selection. Identify where power distribution units, cable outlets and power supplies will be positioned, and make sure their installation does not obstruct equipment or cable routes.

Review compatibility with the accessories you expect to use, including shelves, drawers, patch panels, cable managers, blanking panels and equipment rails. A rack is part of a wider infrastructure system, so accessory mounting options and rail positions can be just as important as the cabinet itself.

Common 19 inch rack buying mistakes

• Choosing height based only on current equipment: this leaves little room for expansion or rearrangement.
• Ignoring rear clearance: connectors and cables can require more space than the equipment chassis.
• Underestimating cable volume: a rack can become difficult to maintain when pathways are not planned.
• Overlooking the installation route: external dimensions and access clearances matter before delivery and positioning.
• Mixing incompatible components: confirm that rails, shelves and accessories suit the cabinet and equipment.
• Neglecting airflow: crowded equipment and blocked ventilation can undermine reliable operation.

A practical checklist before ordering

1. Record every device, its rack-unit height, depth and approximate weight.
2. Add space for cable management, power distribution and non-rack-mounted equipment.
3. Decide whether an enclosed cabinet or open-frame design suits the environment.
4. Measure the installation area, access route and maintenance clearances.
5. Review airflow direction and the room’s cooling arrangements.
6. Confirm rail adjustment, accessory compatibility and cable entry options.
7. Allow sensible capacity for future equipment without selecting an impractical size.

Choose a rack that supports the whole installation

The best 19 inch rack is not simply the largest cabinet that fits the room. It is the one that matches the equipment, available space, airflow requirements, cable layout, security expectations and plans for expansion. Taking these factors into account before purchase helps create a cleaner, easier-to-maintain and more adaptable infrastructure installation.
